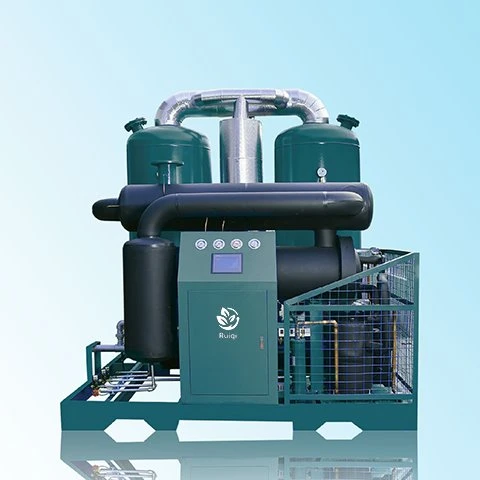

Intelligent Combined Air Dryer Product Features
1. There are two mainstream types of commonly used compressed air dryers: refrigerated compressed air dryers and adsorption dryers.
2. Refrigerated dryers feature zero air loss and low energy consumption, yet they are limited in achievable dew point temperature. In contrast, adsorption dryers can deliver low dew points, but suffer from high regeneration air loss and elevated energy consumption.
3. Intelligent Combined Air Dryer independently developed by our company integrates the respective strengths of refrigerated and adsorption dryers. With optimized piping layout and matched capacity configuration, it maximizes the advantages of both types, delivering optimal economical operation and high-quality finished air with ultra-low dew point.
The intelligent combined air dryer is an integrated high-efficiency air purification equipment that combines refrigerated drying and adsorption drying technology. It perfectly integrates the advantages of two drying modes, solving the limitations of single-type dryers and realizing high-efficiency and high-precision compressed air dehumidification. This all-in-one design balances stable operation, energy conservation and ultra-low dew point air supply, suitable for diverse industrial working conditions.
The equipment first cools and removes most moisture through an efficient refrigeration system, then performs deep dehumidification via adsorption towers. Intelligent Combined Air Dryer adopts intelligent PLC automatic control to dynamically adjust operating modes according to intake temperature, humidity and air volume, avoiding unnecessary energy consumption. With low pressure drop and stable operation, it delivers continuously dry and clean compressed air.
Featuring compact integrated structure, easy installation and low maintenance cost, the dryer effectively avoids adsorbent failure caused by high humidity. It is widely applied in precision manufacturing, electronics, chemical and pharmaceutical industries, providing reliable and energy-saving air treatment solutions for high-standard compressed air systems.
