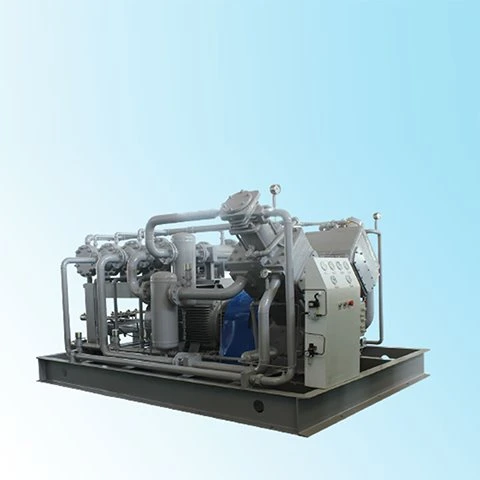

Medium-high Pressure Piston Air Compressor

Supports multi-range medium and high pressure output (20–40 bar) with smooth pressure rise and steady air discharge without pressure fluctuation. It perfectly matches high-pressure air consumption scenarios such as bottle blowing, laser cutting, pipeline pressure testing, high-pressure inspection and military equipment.

Adopts low-speed, high-torque heavy-duty structure with reasonable compression ratio and low exhaust temperature rise, which greatly reduces component wear. It supports long-term continuous full-load operation with outstanding industrial stability and ultra-low failure rate.

Multi-stage segmented compression structure paired with large-area forced heat dissipation system realizes gradual cooling and pressure reduction, effectively controlling unit temperature, avoiding heat accumulation and ensuring 24-hour continuous stable operation.

The Medium-high pressure piston air compressor is built with thick cast body featuring stable structure and high rigidity. Optimized crankshaft balance design lowers vibration and noise during operation, eliminating the need for a special foundation and offering strong adaptability to heavy industrial working conditions.

Equipped with high-precision dedicated high-pressure valve groups with excellent sealing performance and smooth air intake/exhaust flow. It cuts pressure loss, boosts compression efficiency, increases air output and reduces energy consumption.

The pressure-type forced oil supply system delivers uniform lubrication to core moving parts including crankshaft, connecting rod and piston, minimizing wear and temperature rise and significantly prolonging the service life of the whole machine.

Mature and simple mechanical structure with durable core components and few wearing parts. All maintenance points are exposed and intuitive for easy disassembly, inspection and repair, bringing simple daily servicing and low maintenance costs.

Standard full set of protections including high-pressure relief, high-temperature shutdown, motor overload, phase loss and overcurrent protection. The unit will automatically cut power and release pressure under abnormal conditions to eliminate safety hazards during high-pressure operation and enable unattended running.

Low-speed compression design combined with optimized air duct structure achieves low pressure drop and large air output. Medium-high pressure piston air compressor consumes less energy than traditional high-pressure equipment and delivers excellent overall cost performance for long-term industrial use.
