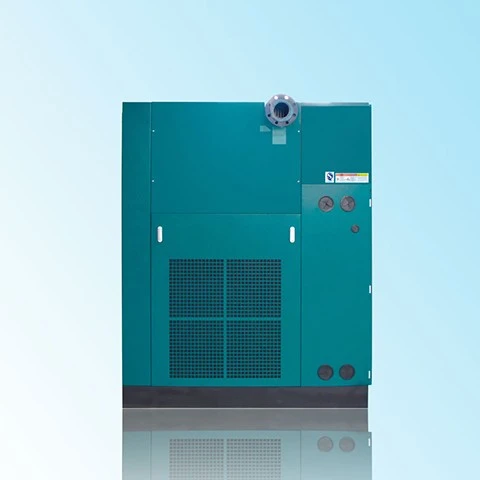

Dry Oil-free Screw Air Compressor
The dry oil-free permanent magnet variable frequency screw air compressor is a high-efficiency, eco-friendly industrial air compression equipment integrating advanced screw rotor technology, permanent magnet motor drive and variable frequency speed regulation technology. Designed to deliver 100% oil-free compressed air, it completely eliminates oil contamination in the air compression process, meeting the strict gas purity requirements of high-end industrial production scenarios.
Product Features
01 Imported airend.
02 IE3 high-efficiency motor with IP54 protection class and Class B temperature rise, suitable for harsh environments with heavy dust and high temperatures.
03 Coupling connection design delivers higher energy efficiency.
04 Multi-layer noise reduction structure: special flame-retardant sound-absorbing cotton is lined inside the unit to lower overall operating noise and create a quiet working environment.
05 Independent air intake structure reduces intake resistance. Multi-function intake valve group supports no-load startup to lower motor load.
06 Matched centrifugal fan and plate-fin cooler feature high wind pressure and low noise. External independent air intake plus specially designed upward exhaust duct prevents hot air backflow.
07 Modular vertical installation of the cooler reduces thermal stress, ensuring stable operation and long service life.
08 Optimized shock-absorbing pads cut vibration and operating noise.
09 Openable access doors are fitted for routine maintenance parts, with easy-to-reach installation positions for quick replacement and convenient servicing.
10 Motor overload protection function.
11 Pipeline system engineered for the design pressure with rational layout and low pipeline pressure drop to boost overall unit energy efficiency.
12 Dry Oil-free Screw Air Compressor is 304 stainless steel piping is adopted for excellent corrosion resistance and extended service life.
13 Cold & hot zone separation design eliminates hot spots inside the unit. Electrical components are placed in low-temperature zones for longer service life.
14 Dedicated control system equipped with multiple pressure and temperature sensors to monitor all unit operating conditions. User-friendly interface enables precise and reliable control.
15 Built-in IoT system allows remote monitoring of machine operating status via mobile phones.
